OMS-90
Na zalogi 100 KOS
Šifra produkta
045
0,00 €

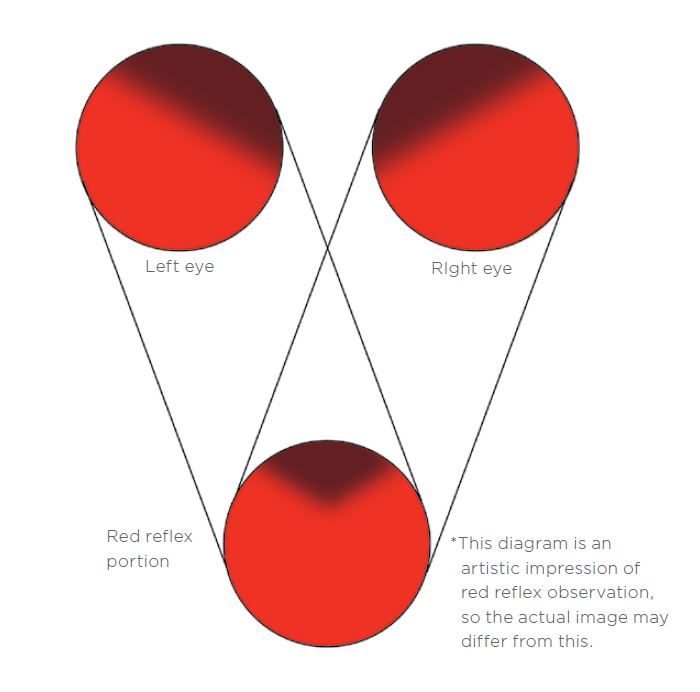

The OMS-90 is Topcon's basic ophthalmic microscope. The Topcon OMS-90 has a parallel binocular, a built in yellow filter, a five step magnification, and a newly designed coaxial illumination. The red reflex is good, thanks to the coaxial illumination.
Ključne lastnosti
✔ New coaxial illumination
✔ Stain-proof coated objective lens
✔ Parallel binocular tube
✔ Built-in yellow filter
✔ Focal length of 200mm
✔ Compact footprint
The OMS-90 is Topcon's basic ophthalmic microscope. The Topcon OMS-90 has a parallel binocular, a built in yellow filter, a five step magnification, and a newly designed coaxial illumination. The red reflex is good, thanks to the coaxial illumination.

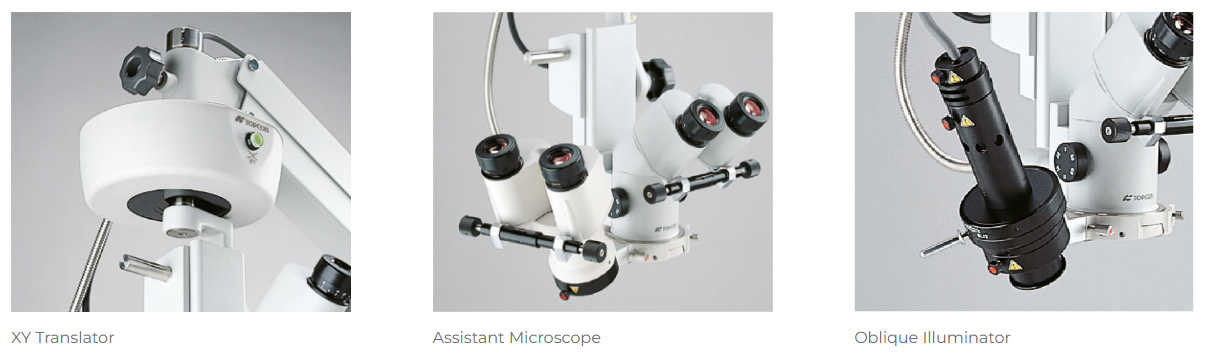

The Topcon OMS-90 can be extended with an XY translator, assistant's microscope and camera attachments.
| Binocular tube | Parallel 45° inclined binocular tube |
| Objective lens | F=200mm |
| Eyepieces | 12.5x |
| Magnification change type | Drum type with 5 changes |
| Total magnification | 3.4x, 5.3x, 8.5x, 13.6x, 21.2x |
| Field of view | Ø 66.3, Ø 42.3, Ø 26.3, Ø 17.1, Ø 10.3 mm |
| X-Y Translator (option) | Range: ±25mm |
| Light source | 12V 100W halogen lamp (light guided system) (one-touch changeable two lamps) |
| Filter | Built-in: Heat absorbing and UV cut filters |
| Flip-in/out: Yellow filter | |
| Length | 1st arm: 400mm; 2nd arm: 560mm |
| Rotational angle | 1st arm: 360°; 2nd arm: 300° |
| Base dimensions | Ø 740m (30”) |
| Primary voltage | AC100~120V or AC220~240V |
| Power frequency | 50/60Hz° |
| Maximum power consumption | 280VA 740mm (30”) |
| Weight | 97 kg |
