OMS-800 Standard

Na zalogi 100 KOS
Šifra produkta
046
0,00 €

The OMS-800 Standard is a basic microscope for cataract & vitreous surgeries.

Ključne lastnosti

✔    Stain proof coated objective lens

✔    3-directional illumination (+/-2 & 4 degrees)

✔    Yellow filter for protection against phototoxity

✔    XY-translator

✔    Multifunction footswitch

The Topcon OMS-800 Standard can be used for vitreous and cataract surgery.

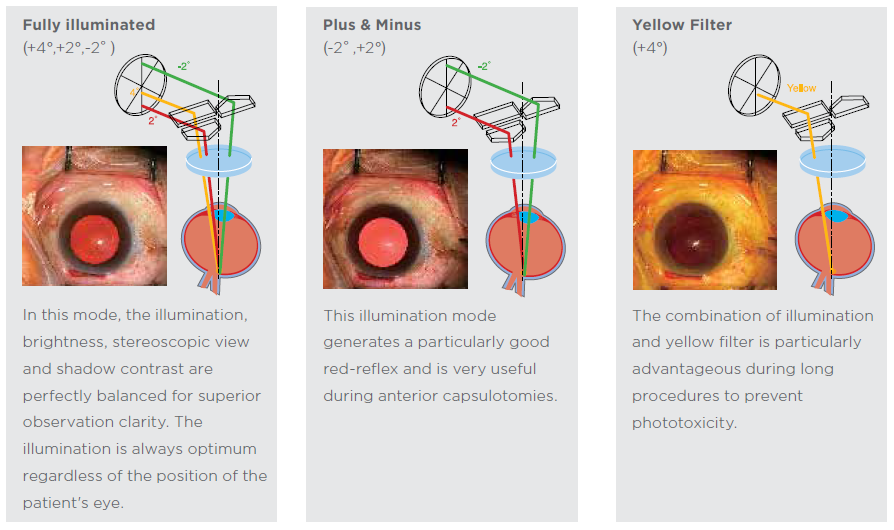

The OMS-800 Standard has a variable angle binocular tube and an X-Y translator incorporated. A compact and stable footprint combined with a long microscope arm ensures a flexible set up in the operation theatre. The multifunctional footswitch can be customized for the Doctor's preference. A yellow filter and 3-directional illumination (±2 0& 40) ensure a versatile illumination system.

Type Galileo type
Magnification selection Continuous zoom
Eyepiece 12.5X
Binocular tube Parallel
Objective lens f = 200 mm
Magnification indications 4.2 / 5 / 6 / 7 / 8 / 9 / 11 / 13 / 15 / 17 / 19 / 21
Total magnification 4.2X - 21X
Maximum arm load 9-21 kg
Accessory capacity 9,6 kg
Power voltage AC100-120 50/60Hz, AC220-240V 50/60Hz
Power input 280VA
Illumination bulb Halogen 100W
Weight 244 kg
Offiss N/A
Magnetic locking N/A
Apochromat Yes
Dual focus system N/A
Illumination angle All (±2°,+4°) / ±2° / Yellow filter (+4°)
