IMAGENet6
Topconov IMAGEnet 6 omogoča dostop do podrobnih informacij o pregledu pacienta, kar jim daje možnost sprejemanja bolj informiranih kliničnih odločitev.

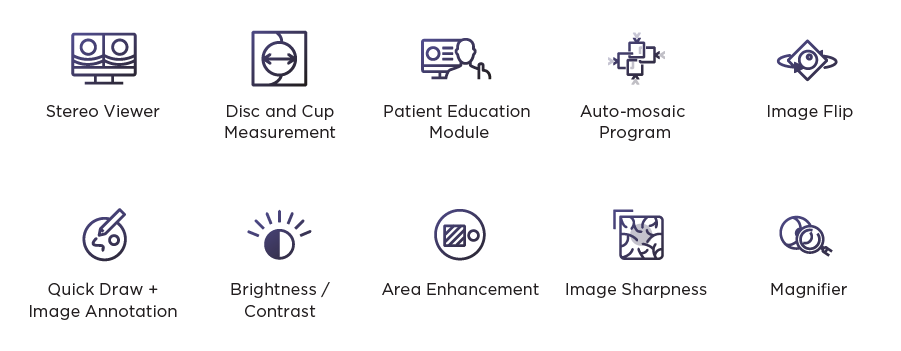

Ključne lastnosti
✔ Spletna aplikacija
✔ Multimodalno prikazovanje
✔ Integrira se s katero koli Topcon napravo
✔ Prenos podatkov med Topcon napravami
✔ Integriran z lokalnimi softverji za prenos podatkov o pacientu
(Helios Optometrija, Opticom, Hipokrat)
✔ Možnost migracije podatkov iz i-base baze
✔ Avtomatski zajem podatkov iz aparatov, ki pošiljajo podatke v lokalno mrežo
Popolna programska rešitev za Topcon naprave
Topconov IMAGEnet6 je popolna rešitev za zajem, obdelavo in shranjevanje podatkov ter slik. Sistem je zasnovan za vse strokovnjake, ki delajo s kliničnimi podatki, za katere je potrebno skrbeti na logičen in varen način. Topcon IMAGEnet6 je zasnovan tako, da brez težav deluje z razširjenim naborom Topcon medicinske opreme, kot so Topcon retinalne kamere za očesno ozadje, špranjske svetilke in Topcon refrakcijski instrumenti. Z uporabniško prijazno razporeditvijo je mogoč popoln nadzor nad vsakim instrumentom, z nekaj kliki z miško pa lahko analizirate in organizirate podatke instrumentov.
Opomba: Informacije na tej spletni strani so namenjene zdravstvenim delavcem. Vsi izdelki, storitve ali ponudbe niso odobreni ali ponujeni na vseh trgih, izdelki pa se razlikujejo od ene države do druge. Za informacije in razpoložljivost v posameznih državah se obrnite na svojega lokalnega distributerja.
Zahtevajte več informacij še danes
Ne glede na to, ali imate vprašanja o izdelku ali ste pripravljeni na nakup, smo pripravljeni pomagati.
Pošljite nam povpraševanje in nekdo iz naše ekipe vas bo kmalu kontaktiral.
SISTEMSKE ZAHTEVE
PREGLEDNA POSTAJA
| Personal Computer (Minimum specifications) | |
| Operating System | Windows 7 Professional 32 & 64 bit or later |
| Web browser | Google Chrome 43.0 – 74.0.3729.131 or later |
| CPU | Intel Core2Duo E6600 4MB L2 2.4GHz 1066MHz FSB, or faster |
| Memory (RAM) | Minimum 4GB of RAM (8GB or more recommended) |
| Graphics Card | Intel HD Graphics 4400 |
| Hard Drive | At least 2TB (RAID 1 recommended) |
| Monitor | Minimum resolution 1920x1080 PPI |
POSTAJA ZA ZAJEMANJE
| Personal Computer (Minimum specifications) | |
| Operating System | Windows 8.1 Professional 64-bit or Windows 10 Professional 64-bit |
| Web browser | Google Chrome 43.0 – 74.0.3729.131 or later |
| CPU | Intel Core i7 2600 (3.4GHz) or other CPU having higher speed * Use a CPU with the following number of cores. - 4 physical cores and 8 logical cores - 8 physical cores and 8 logical cores [Recommended: Intel Xeon CPU E5-1630 v3 (3.7GHz) or higher] |
| Memory (RAM) | Minimum 8GB of RAM (16GB or more recommended) |
| Graphics card | VRAM of 1GB or more with OpenGL capability [Recommended: TOPCON GPGPU card (TOPCON GPGPU_BOARD or TOPCON GPGPU_BOARD2) (Option)] |
| Drive | DVD-Multi drive |
| Extended slot (for TOPCON GPGPU Card) |
BUS: PCI Express 3.0 x16 Power supply: More than 62W Board size: 167.6mm x 111.2mm x 1 slot |
| Network card | Applicable to PCI Express Gigabit (for connecting DRI OCT Triton). When connecting to the network in medical facilities, another LAN terminal is necessary. |
| Database | One of the following versions must be installed according to the OS. Windows 10 • Microsoft SQL Server 2016 • Microsoft SQL Server 2014 Service Pack1 (and higher) • Microsoft SQL Server 2012 Service Pack2 (and higher) Windows 8.1 • Microsoft SQL Server 2016 • Microsoft SQL Server 2014 • Microsoft SQL Server 2012 Service Pack1 (and higher) • Microsoft SQL Server 2008 R2 Service Pack2 (and higher) |
| Hard Drive | At least 2TB (RAID 1 recommended) |
| Monitor | Minimum resolution 1920x1080 PPI *For OCT Angiography use, NVIDIA Quadro M2000 |
SERVER
| Hosting of webserver & database | |
| Operating System | Microsoft Windows Server 2012 R2 Standard 64 bit |
| Web browser | Google Chrome 43.0 – 74.0.3729.131 or later |
| CPU | Intel Core2Duo E6600 4MB L2 2.4GHz 1066MHz FSB, or faster |
| Memory (RAM) | Minimum 8GB of RAM (16GB or more recommended) |
| Graphics Card | OpenGL 4.3 and WebGL (Intel HD Graphics 4400 or later) |
| Hard Drive | At least 2TB (RAID 1 recommended) |
| Database | One of the following servers must be installed according to OS. Windows 10 • Microsoft SQL Server 2016 • Microsoft SQL Server 2014 Service Pack1 (and higher) • Microsoft SQL Server 2012 Service Pack2 (and higher) Windows 8.1 • Microsoft SQL Server 2016 • Microsoft SQL Server 2014 • Microsoft SQL Server 2012 Service Pack1 (and higher) • Microsoft SQL Server 2008 R2 Service Pack2 (and higher) |
IMAGEnet 6 OPHTHALMIC DATA SYSTEM version 3.0
Part #: IMAGEnet 6 GL Perpetual 1 License v3.0: 1026550-01 | IMAGEnet 6 GL Perpetual 3 License v3.0: 1026551-01 | IMAGEnet 6 GL Perpetual 12 License v3.0: 1026550-01
