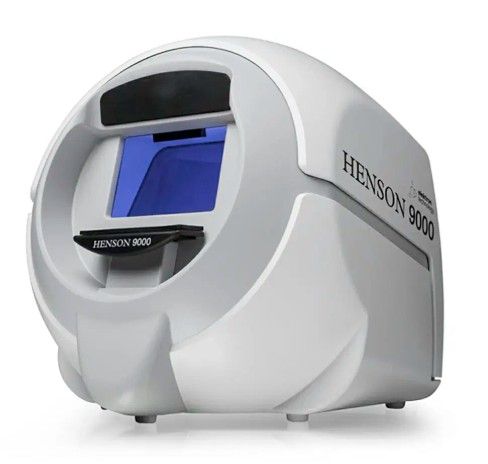

Henson 9000
The new Henson 9000 Visual Field Analyser is the first to fully meet the everyday requirements of hospital eye unit, optometrist and ophthalmologist.
Ključne lastnosti
✔ New ZATA threshold algorithm conforms to Goldmann standard
✔ Faster threshold testing using prior data for greater accuracy
✔ Uses variable terminating criteria to further reduce test times especially in normal and severely damaged eyes
✔ Fast single and multiple stimulus suprathreshold programme
✔ Numerous PC configuration options now available
✔ Fully compatible with Henson 8000
✔ Fully Compliant DVLA Estermann test
✔ Optional Motorised chin rest controlled by PC
✔ PDF format printouts available
✔ Low maintenance costs
We know that when screening for disease, the two statistics determining performance are sensitivity and specificity.
We also know that a screening test needs to be conducted as quickly as possible, for the benefit of your practice and your patient.
Until now, these factors have been interdependent. For example, quicker testing has been achieved but at the expense of accuracy. Or increased accuracy has limited speed.
When thinking about updating your perimeter, you really need to consider the major advantages the Henson 9000 offers:
- New ZATA threshold algorithm conforms to Goldmann standard
- Faster threshold testing using prior data for greater accuracy
- Fast multiple and single stimuli suprathreshold programmes
- Fully networkable through control device
- PDF format printouts available
- Fully Compliant DVLA Estermann test
- Fully compatible with Henson 8000
- Conforms with Goldmann standard
- Degradation-free light source
- Solid-state technology
- Low maintenance costs
- Numerous PC configuration options now available
- Optional Motorised chin rest controlled by PC
Test Specifications | |
Visual field test range Visual field testing distance Stimulus intensity (maximum) Background illumination Stimulus duration Stimulus size |
60° (monocular) / 160° (binocular) |
Test methods | Standard Automated Perimetry (SAP), white-on-white |
Screening tests/patterns | |
Suprathreshold - single stimulus Suprathreshold - multiple stimulus Esterman (Driving) Customised tests |
3 levels (26, 68, 136 points) 3 levels (26, 68, 136 points) Groups 1 and 2 (EU standard) Test locations can be manually added to all suprathreshold tests |
Threshold tests/patterns | |
Zata Standard - threshold central Zata Fast - threshold central |
10-2; 30/24-2 (extendable in-test) 10-2; 30/24-2 (extendable in-test) |
Average testing times | |
Suprathreshold - single stimulus Suprathreshold - multiple stimulus ZATA |
~90 seconds per eye <60 seconds per eye ~4 minutes per eye |
Fixation control | |
Fixation target Heijl-Krakau Video eye monitor |
Single or 4-point LED diamond pattern Yes Yes |
Software features | |
Patient management database Practice management integration Languages Hemifield Analysis Progression Analysis HFA data import |
MS Windows compatible; networkable EMR compatibility (parameter passing and text file) ENG, CHI, key European languages Yes Yes Yes |
Connectivity | |
DICOM Ethernet Database backup |
Yes (images) Yes, via connected computer Removable, network or cloud storage |
Dimensions | |
Weight (kg) Measures (mm) |
13.5 440 x 400 x 452 |
Classification | |
Mains operated Medical device Applied part |
Yes Class 1 Type B |
Regulatory approvals | |
CE FDA |
Yes Yes |
Control device | External PC / laptop / tablet running MS Windows® Professional, v. 7, and above |
Patient unit inputs/outputs | C13 mains input; Patient Response Button; 2 x USB Type B connector |
Electrical requirements | 85 - 263V AC, 50/60Hz, 60VA |
Optional printer | Any compatible with controlling computer |
